Orbea Wild M-LTD 2023 Review

Orbea Wild M-LTD

Table of Contents

The Orbea Wild already has a strong reputation in the industry, with previous incarnations of the bike offering outstanding climbing and descending ability.


The 2023 edition of the bike has been tweaked in a few different areas, which could be said to be risky. Sometimes, after all, less is more and changing a good thing can actually take a bike backwards, rather than improving it.


So does the Spanish manufacturer make any poor decisions with the 2023 Wild M-LTD? Or do they just add a cherry to the cake? Let’s get stuck into this Orbean Wild review…

Our Verdict


The Orbea Wild M-LTD is among the best enduro e-MTBs we’ve ever ridden.


It’s an absolute beauty, offering immense versatility and durability. It’s capable of the biggest drops, the trickiest climbs and has the handling to cope with the most challenging technical sections.


There are few bikes which offer such a rounded package; it’s dripping in high-spec components and has a market-leading bit of kit in the motor department.


There are only two issues; you don’t get a display as standard and it’s a hassle to charge.


These are very easy fixes to make, though, to take this to a 5 out of 5.



Orbea Wild M-LTD 2023

Orbea Wild M-LTD parts

Price: $13,289

ℹ️ We reviewed the standard Orbea Wild M-LTD. Upon purchase on the company’s website, you can upgrade different elements, which we’ve listed.


Orbea Wild M-LTD frame

The Orbea Wild M-LTD comes with the company’s carbon compound Wild OMR 2023 frame. It’s ultra strong, with outstanding shock absorption, which helps dissipate impacts through the frame, rather than through your body.


The Orbea Wild weight is 22.56kg in the large frame size, which we rode during our review rides. The frame stiffness is one area which has been heighted in this 2023 edition of the bike – the company has done away with the battery flap on the downtube, which they say reduced downtube stiffness by more than 50%.


There are pros and cons here – you have a more robust front triangle, but it takes longer to remove your battery. The bike’s geometry is geared up for enduro style riding, with a balanced geometry offering aggressive elements, but also stability.


That balance means the bike feels assured on the climbs, offering enough traction to heighten pedalling efficiency, but also having enough of an aggressive stance to be able to attack descents comfortably.

You can choose between 4 bike Orbea has got the mix bang on and the bike comes in 4 frame sizes – small, medium, large and extra large.


Orbea Wild M-LTD battery

The Orbea Wild M-LTD comes with a 625Wh Bosch PowerTube battery as standard, although you can upgrade the set-up on purchase to a 750Wh for an extra $275. We’re very impressed with the performance of the Bosch PowerTube on the Orbea Wild – it’s a good battery anyway, but seems to excel on this bike.


We managed to knock out some enormous numbers, hitting over 150km, including large sections of climbing. The battery size to weight ratio is impressive and clearly, with the 750Wh battery, you would have even more gas in the tank.


The battery is lodged firmly into the downtube as we already mentioned – it can be a bit of a hassle to remove, but Orbea claims it improves the strength of the bike’s frame by removing the clip in and out flap.


Luckily you have that big range, which means you don’t have to face hassle too quickly. The battery takes 2 hours to charge up to 50% from empty and just under 5 hours to charge up to 100%.


The Orbea Wild comes with the all-new Bosch Performance Line CX-R motor. The R stands for the race and it’s a limited-edition motor, which Bosch have brought out for top end bikes and elite level racers – it’s more advanced than the excellent Bosch Performance Line CX model.

Orbea Wild M-LTD motor

You still get a sizeable 85Nm of torque, but there are added features in there, which heighten the ride experience. The motor is ultra intelligent and can sense how much force you’re putting through the pedal and knocks off the support if it thinks you can manage a section on your own – similarly, if it feels you struggling, it will heighten its assistance independently.


It makes riding the bike a dream and creates a completely natural feel to the power output. The bike’s handling, reasonable weight and motor power makes climbing a doddle and the bike handles all challenges with ease. You get 4 modes of assistance to choose from, including Eco, Tour+, e-MTB and Race.

ℹ️ For an inexperienced rider, the Race mode could be like a kick in the face – it’s really very powerful and takes some getting used to. We only recommend using this in the hardest sections. Experienced riders should tame it fairly quickly.

Motor Display

Orbea Wild M-LTD motor display

The Orbea Wild doesn’t come with a display as standard – Orbea says its done this to keep a clean looking finish and for minimal distraction from the handling.


There’s a Bosch System Controller integrated into the top of your top tube, which shows you 5 LED lights for the amount of battery you have left – our absolute nightmare in the e-MTB world.


The top tube setup also shows you what mode of assist you’re in and you have a small controller on the handle bars to flick between them. That’s all you get, which we find pretty poor and uninspiring, to be honest. On such a beautiful bike, we expect a lot more.


When you purchase the bike on the company’s website you can include a Bosch Kiox display for an extra $165, which you can then mount on your handle bars – offering lots of customisable data options. However, to not include one as standard is poor in our opinion.

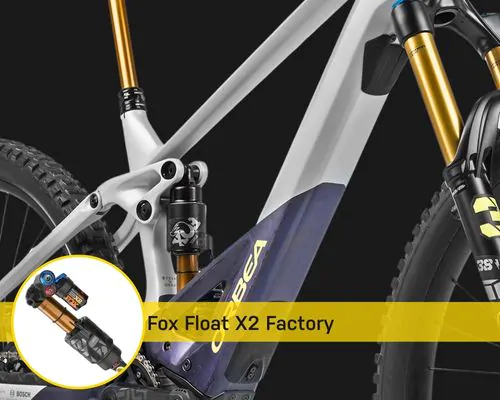

Orbea Wild M-LTD shock
Orbea Wild M-LTD front fork

The standard Orbea Wild comes with 170mm of travel at the front and 160mm at the rear, however, for no extra cost you can lower the fork travel to 160mm.


The standard bike comes with FOX 38 Float Factory forks and FOX Float X2 Factory rear shocks. That’s a mega setup made for some serious punishment on the trickiest descents and the bike excels as a result.


It feels very comfortable at flat-out speeds, downhill, and at times has the air of a conventional enduro MTB, you can launch it off some big old drops and the suspension responds with finesse. At no point do you come crunching down or feel like you’re about to break a limb on impact.


The suspension and super strong frame work in harmony to create a very comfortable ride experience, even on the most gnarly terrain.

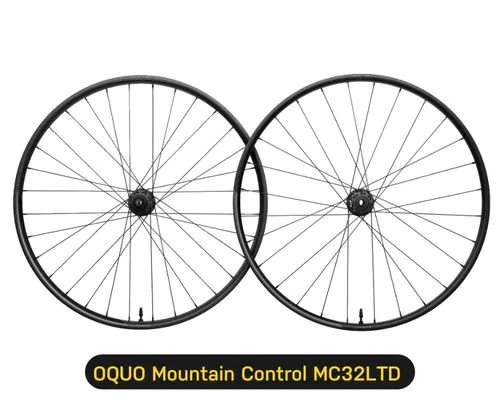

Orbea Wild M-LTD rims
Orbea Wild M-LTD tyres

The Orbea Wild M-LTD comes with 29in wheels at both the front and rear. The wheels are OQUO Mountain Controls, which are extra sturdy to take the big impacts we mentioned in the last section.


They respond well to all the punishment you throw in their way and come with a Maxxis Minion DHF tyre at the front and a Maxxis Minion DHR II at the rear. The tyres offer a very toothy bite into the trail and are also super light; they offer everything you need from an e-MTB setup.


Orbea Wild M-LTD brakes
Orbea Wild M-LTD brakes

The Orbea Wild M-LTD comes with Shimano XTR M9120 brakes, which are top-end Shimano models, capable of bailing you out of trouble when you need them most. They have immense fighting power into the corners and when you’re flying nose-down on the descents. Ultra trustworthy.

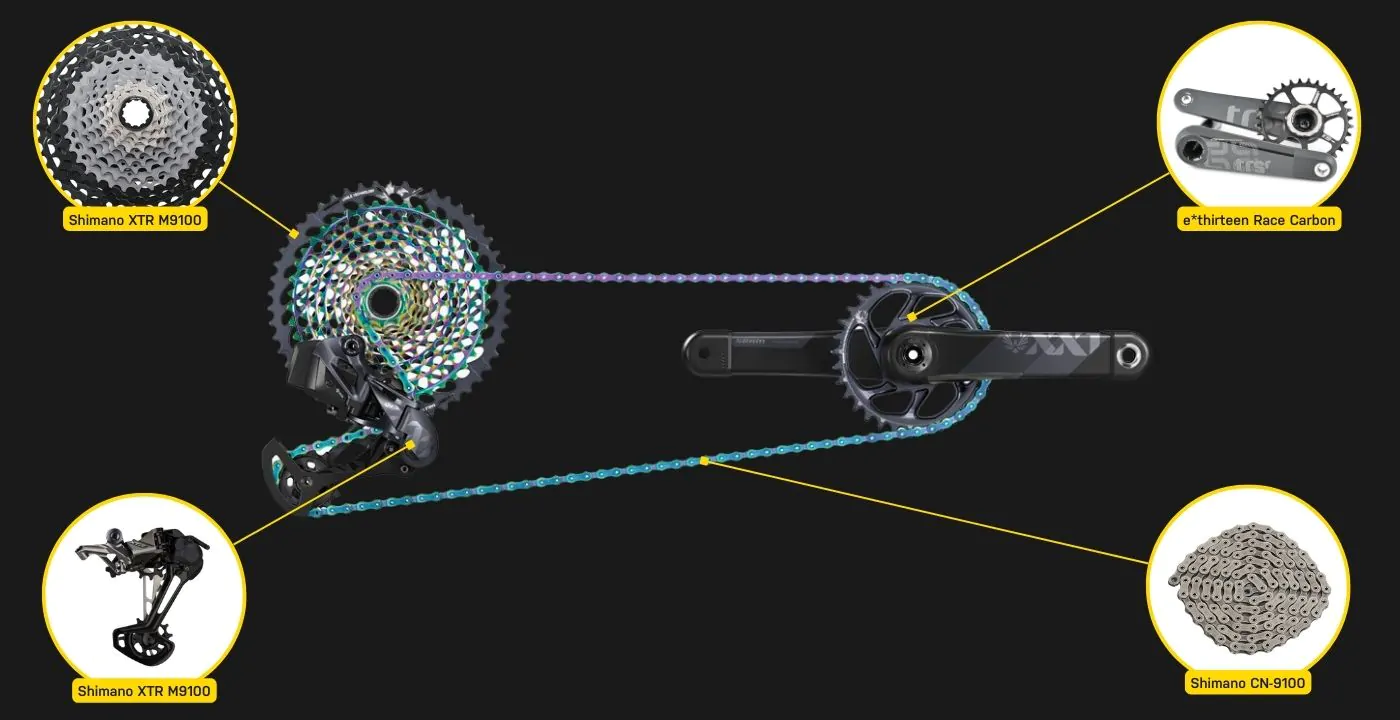

Orbea Wild M-LTD drivetrain

The Orbea Wild M-LTD comes with a 12-speed Shimano XTR M9100 drivetrain. Another excellent set of components, which are some of the best on the market. They offer insanely smooth shifting and responsiveness, which are capable of handling the high demands you ask of them.

Price: $13,289

This is clearly a lot of money, but you’re getting a truly exceptional bike for that amount. There isn’t a great deal we can fault the bike on, however, we are disappointed by the lack of display. It’s only that aspect, plus the hassle of clipping in and out the battery which causes us any concern.

Orbea Wild M-LTD Facts & Figures

Size Configurations

rider height
S16040800363/125150 cm – 175 cm
59.1″ – 65.9″
M16040800418/150160 cm – 185 cm
63.0″ – 72.8″
L16050800475/175170 cm – 195 cm
66.9″ – 76.8″
XL16050800530.7/200180 cm – 205 cm
70.9″ – 80.7″

* Estimated measurements


SEAT TUBE (C-T)415.0415.0435.0460.0
TOP TUBE (EFF)573.0595.0622.0649.0
HEAD TUBE110.0120.0130.0140.0
BB HEIGHT353.0353.0353.0353.0
HEAD ANGLE64.0°64.0°64.0°64.0°
SEAT ANGLE77.5°77.5°77.5°77.5°
FORK LENGTH575.0575.0575.0575.0

Full Specs

FrameShockSuspension Fork
Orbea Wild OMR 2023
160mm travel, 29″ wheels, Concentric Boost 12×148
Fox Float X2 Factory Trunnion
2-Position Adjust Kashima custom tune 205x65mm
Fox 38 Float Factory
170 Grip2 QR15x110 Kashima
Alloy 1-1/2″, Black Oxidated Bearing
e*thirteen e*spec Direct Mount 34T Booste*thirteen Race CarbonShimano XTR M9100
CassetteRear DerailleurChain
Shimano XTR M9100
10-51t 12-Speed
Shimano XTR M9100 SGS Shadow PlusShimano CN-9100
e*thirteen Plus Bosch CX Gen4 32-38t
OC Mountain Control MC10 Carbon, Rise 20, Width 800OC Mountain Control MC10 Alu SL, 0º
BrakesBrakes Configuration
Shimano XTR M9120Hydraulic Disc
OQUO Mountain Control MC32LTD CarbonMaxxis Minion DHF 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR

Maxxis Minion DHR II 2.60″ 120 TPI FB 3C Maxx Terra Exo+ TR
SeatpostSeatpost LeverSaddle
Fox Transfer Factory Kashima Dropper 31.6Shimano SL-MT-800 I-Spec EVFizik Terra Aidon X1 145mm
BOSCH Performance Line CX-R BDU3741BOSCH Powertube 625Wh Horizontal BBP3760BOSCH System Controller BCR3100
Bosch Charger 4A (230V) BPC3400BOSCH Mini Remote BRC3300

How Does it Compare?

We’re going to pit the Orbea Wild M-LTD up against the Specialized S-Works Turbo Levo – another market leader in the enduro market.

Specialized S-Works Turbo Levo

The S-Works comes in at 22.1kg, 0.4kg lighter than our Orbea Wild, with a fully carbon frame. You get a custom 700Wh battery on Specialized, which is on par with our Bosch model, with excellent range on both.


And you get 90Nm of torque with Specialized’s custom motor, which is 5Nm more than our Orbea’s Bosch Performance Line CX-R – both operate incredibly intelligently and are at the very top of their game.


Specialized has included its excellent Mastermind TCU display, which elevates a ride experience in every way, but you get less travel – with only 160mm at the front and 150mm at the rear.


Our Orbea has 10mm more at both the front and rear end, however, the Specialized has a mullet wheel setup designed to add playfulness. Specialized has gone for Magura MT7 brakes and an SRAM XG drivetrain – on par with our components.


The Specialized comes in at $15,000 – around $1,700 more than our Orbea. The Specialized is overpriced, but it is excellent in every way, just pipping our outstanding Orbea to the post on this one.

Final Thoughts

The Orbea Wild M-LTD is a truly sensational e-MTB. It’s geared up for war and can take on the gnarliest descents and the most challenging climbs, operating seamlessly throughout. It’s seriously robust and is capable of taking on the biggest hits, but leaving you feeling comfortable.


It’s dripping in high-spec components, has market leading electrics, a big old range and handles a dream. It’s one of the best enduro bikes we’ve ever ridden and in terms of rideability, there are few better on the market.


However, there are two areas which annoy us, the lack of a display as standard is an oversight and it’s a hassle to charge the battery, but in terms of ride quality, it’s an absolute dream. If Orbea sorts out the display and the charging issue, then this is 5 out of 5. This is a bike you absolutely have to saddle up on, so get out there and ride it now.
